- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161173
-
- alternative name: Wholesale Radio
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org

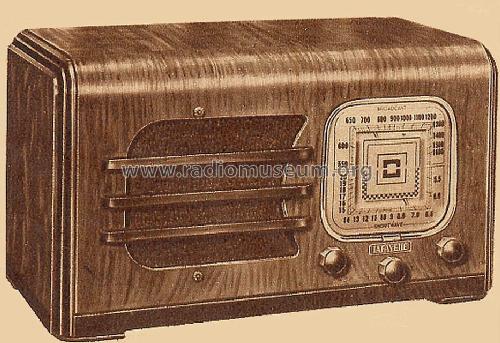

- Model: DA-14 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15.12 x 8.87 x 8 inch / 384 x 225 x 203 mm
- Notes
- 4-Tube, 6 Volt, Two Band Superhet.
The SW band is 48 - 150 m and BC 175 - 560 meters.
Hardwood cabinet.
Shipping Weight 22 lbs.
List price for model DA-14 is $ 41.70 and Lafayette price is $ 20.85.
- Price in first year of sale
- 21.00 $
- Literature/Schematics (1)

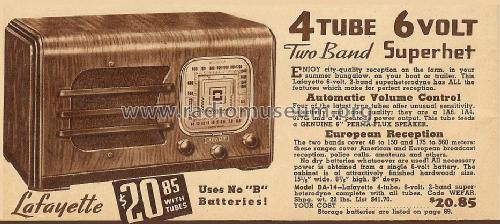

- Lafayette Radio Catalog ((Lafayette Spring and Summer catalog no. 68 for 1937, page 104))
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
