• Year
  • 1931/1932
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 162357
    • alternative name: Wholesale Radio

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF without regeneration
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: De Luxe Auto Radio - Lafayette Radio & TV Corp; New
  • Shape
  • Chassis only or for «building in»
  • Notes
  • The Lafayette "De Luxe Auto Radio" was delivered with power supply box, shielded chassis, dynamic speaker, remote control attachment and Sylvania tubes and the necessary battery wires, plugs etc.

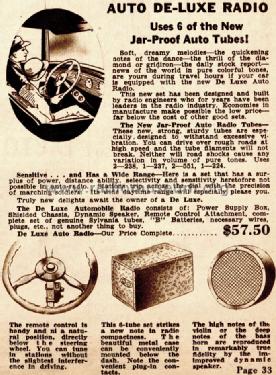

    The De Luxe Auto Radio was sold for $ 57.50. See details or summaries about this catalog.
  • Price in first year of sale
  • 58.00 $ +
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
