• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1967 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 285595

• • alternative name: Wholesale Radio

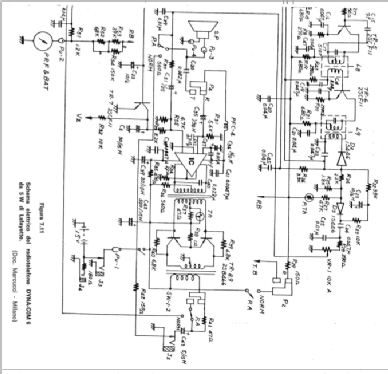

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• CA3020

• Main principle
• Transceiver

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / 15 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 5 W (unknown quality)

• from Radiomuseum.org
• Model: Dyna-Com 6 - Lafayette Radio & TV Corp; New

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• 11m - band
  6 channels with quartz

  PA function.
  12 transistors, 1 IC and 3 diodes.

• Mentioned in
• -- Schematic (Ricetrasmettitori VHF, Walter Favaro CELI edizioni)

• Author
• Model page created by Stefano Cerchi. See "Data change" for further contributors.
