- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 242188
-
- alternative name: Wholesale Radio
1935 Lafayette catalog no. 56, page 28
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 3 x 45 & 22.5 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org

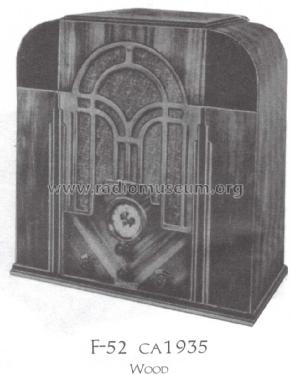

- Model: F-52 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 15.5 x 18.75 x 10 inch / 394 x 476 x 254 mm
- Price in first year of sale
- 29.75 USD
- Mentioned in
- Machine Age to Jet Age II (page 181.)
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 161.)
- Literature/Schematics (3)
- Lafayette Radio Catalog (1935 catalog no. 56, page 28)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
