- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1940
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 184689
-
- alternative name: Wholesale Radio
Lafayette Katalog No.82, Seite 34
Lafayette Katalog No.80, Seite 28
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Metal case
- from Radiomuseum.org
- Model: FE-32 - Lafayette Radio & TV Corp; New
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 6 x 5.875 x 12 inch / 152 x 149 x 305 mm
- Notes

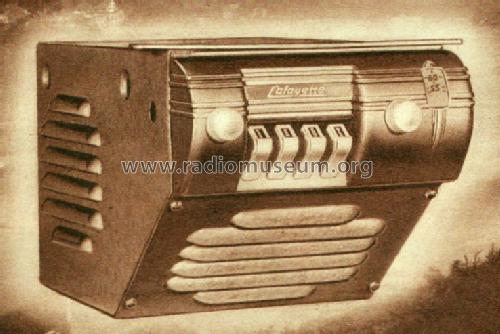

- The unit is inteded for under dash mounting with the controls protruding and the loudspeaker facing downwards. Station select by 4 push buttons..
See details and summaries for the models of this Lafayette catalog no. 82, 1941 for radio season 1940/41. Model FE-32 was already offered for sale in the Lafayette catalog No.80, page 28.
- Price in first year of sale
- 15.00 $
- Mentioned in
- Lafayette Radio Catalog (catalog No.82, page 34)
- Literature/Schematics (1)
- Lafayette Radio Catalog (No.80, page 28)
- Author
- Model page created by Felix Schaffhauser. See "Data change" for further contributors.
