FM-AM Table Radio 1R805, 1R806
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 363337
-
- alternative name: Wholesale Radio

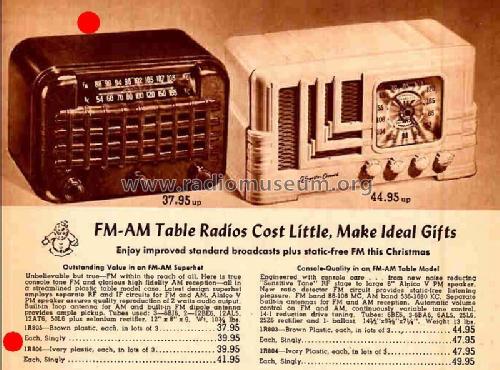

catalog no 88 (xmas) 1948 page 30
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: FM-AM Table Radio 1R805, 1R806 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 12 x 9 x 8 inch / 305 x 229 x 203 mm
- Notes
-
Using selenium rectifier.
Built in antenna.
Price listed complete with tubes.
1R805 Brown Case $39.95 USD.
1R806 Ivory Case $41.95 USD.
Similar model is the Regal FM78.
- Mentioned in
- Lafayette Radio Catalog (catalog no 88 (xmas) 1948 page 30)
- Author
- Model page created by Glen Orriss. See "Data change" for further contributors.
