• Jahr
  • 1962 ??
  • Kategorie
  • Rundfunkempfänger (Radio - oder Tuner nach WW2)
  • Radiomuseum.org ID
  • 354947
    • anderer Name: Wholesale Radio

 Technische Daten

  • Anzahl Röhren
  • 8
  • Hauptprinzip
  • Super mit HF-Vorstufe
  • Wellenbereiche
  • UKW-Gerät bzw. FM (keine weiteren Bänder).
  • Betriebsart / Volt
  • Wechselstromspeisung / 117 Volt
  • Lautsprecher
  • - Für Kopfhörer oder NF-Verstärker
  • Material
  • Metallausführung
  • von Radiomuseum.org

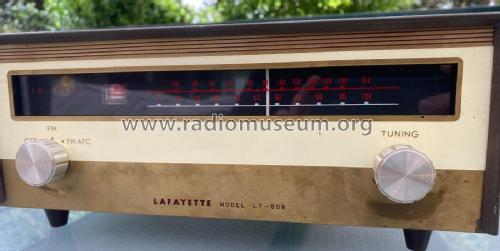

  • Modell: FM Tuner LT-80B - Lafayette Radio & TV Corp; New
  • Form
  • Regalgerät wie HiFi-Komponente für Bücherwand.
  • Abmessungen (BHT)
  • 11.375 x 4.125 x 8 inch / 289 x 105 x 203 mm
  • Bemerkung
  • FM tuner with AFC; mono, with MPX output.

    Note: The tubes and dimensions are for FM Tuner 80A as shown in the first 1962 Lafayette catalog.  There is no catalog entry for FM Tuner 80B, and the next model is FM Tuner 81 appearing in Lafayette Catalog 626 at the end of 1962.

    Made in Japan

  • Autor
  • Modellseite von Gottfried Silberhorn angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
