- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 242189
-
- alternative name: Wholesale Radio

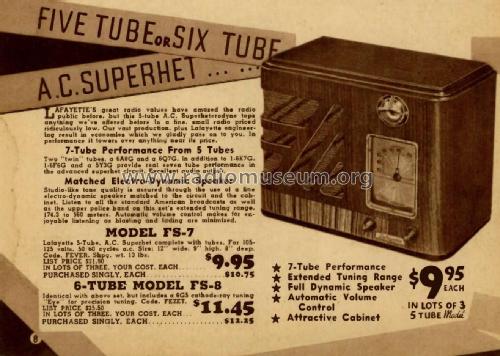

1938 Lafayette catalog no. 71, page 8
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

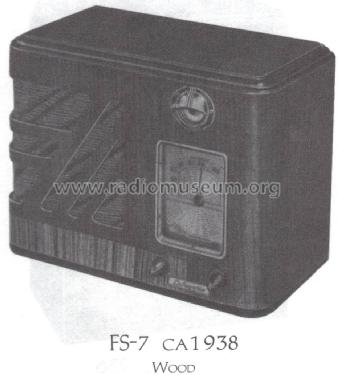

- Model: FS-7 - Lafayette Radio & TV Corp; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 9 x 8 inch / 305 x 229 x 203 mm
- Notes
-
Price listed complete with tubes.
- Price in first year of sale
- 10.75 USD
- Mentioned in
- Machine Age to Jet Age II (page 181.)
- Literature/Schematics (1)
- Lafayette Radio Catalog (1938 catalog no. 71, page 8)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
