Guardian II 99R3534L
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245707
-
- alternative name: Wholesale Radio

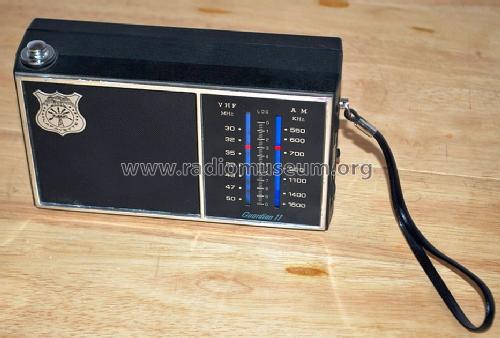

Picture Courtesy Of EBAY User: silkpurses

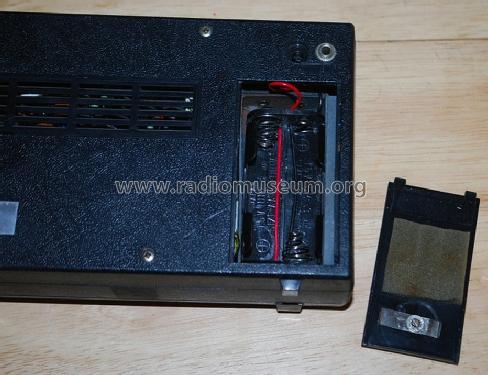

Picture Courtesy Of EBAY User: silkpurses
Picture Courtesy Of EBAY User: silkpurses
Picture Courtesy Of EBAY User: silkpurses
catalog no 684 1968 page 6
1969 Lafayette Catalog No. 690, page 154.
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1.5 / DC 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Guardian II 99R3534L - Lafayette Radio & TV Corp; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 7 x 4.125 x 2.125 inch / 178 x 105 x 54 mm
- Notes
-
Bands include VHF (Police, etc.) and standard MW.
Telescopic Antenna, Wrist Strap.Bands:
- VHF 30 - 50 MHz (Low Band)
- MW 540 - 1600 kHz
See also Lafayette Guardian II 99H3522L with VHF range 147 - 174 MHz.
- Price in first year of sale
- 21.95 USD
- Mentioned in
- Lafayette Radio Catalog (Cat. no 684 (1968), page 6; Cat. No. 690 (1969), page 154)
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-99, April 1969)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
