Guardian 6000 99-35065W

Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1760228) Radio Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529976) Radio
Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529978) Radio Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529980) Radio
Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529973) Radio Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529975) Radio
Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529970) Radio Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529971) Radio
Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529972) Radio Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1529979) Radio
Use red slider bar for more.
Guardian 6000 99-35065W; Lafayette Radio & TV (ID = 1760228) Radio
Lafayette Radio & TV: Guardian 6000 99-35065W [Radio] ID = 1760228 1399x1302
Select picture or schematic to display from thumbnails on the right and click for download.
For model Guardian 6000 99-35065W, Lafayette Radio & TV Corp; New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Lafayette Radio & TV Corp; New York (NY)
alternative name

Wholesale Radio
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 117; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Guardian 6000 99-35065W - Lafayette Radio & TV Corp; New
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Lafayette Guardian 6000, Stock No. 99-35065W;

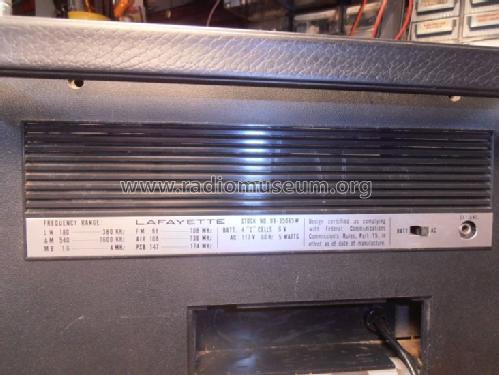

Coverage:
LW: 180 - 380 KHz,
AM: 540 - 1.600 KHz,
MB: 1.6 - 4 MHz,
FM: 88 - 108 MHz,
AIR: 108 - 136 MHz,
PSB: 147 - 174 MHz,
ext. antenna in, turnable ferrite bar antenna with compass rose, 5 W power consumption, dial light, tuning/batt. meter, earphone & headphones jack, AUTO/man. AGC, squelch control.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Lafayette Radio & TV Corp; New York (NY)
Here you find 1308 models, 1116 with images and 395 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
