• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1960 ?

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 139115

• • alternative name: Wholesale Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BA8 6U8A 6AU6A 6U8A 6T8 6AQ5A 6AW8A

• Main principle
• Transceiver; ZF/IF 1650 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / Either DC 12.6 or AC 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

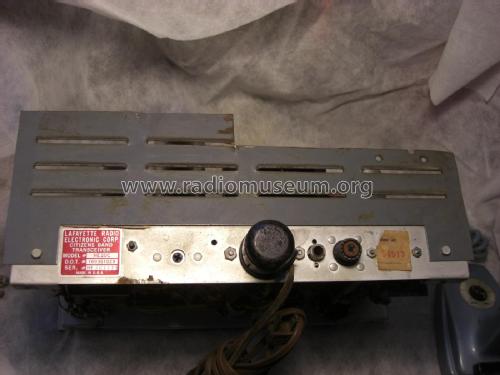

• Model: Citizen Band Transceiver HE20C - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.5 x 5.5 x 8 inch / 318 x 140 x 203 mm

• Notes

• Crystal sockets for 8 channels.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
