• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 93340

• • alternative name: Wholesale Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 7025 7025 7025 7025 7025 7025 7025

• Number of Transistors

• Semiconductors
• Selenium-Rectifier Selenium-Rectifier

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

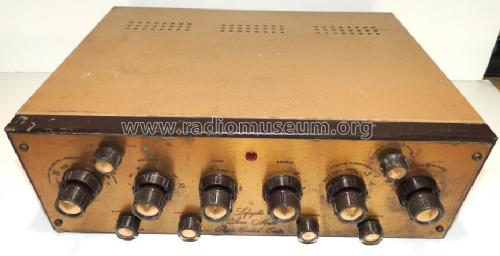

• Model: HiFi Stereo-Preamplifier KT-600 - Lafayette Radio & TV Corp; New

• Shape
• Rack

• Notes

• Several phono equalization settings.

  Sams photofact set 476 folder 7 date 3-60 features the Lafayette models KT-600 and LT-600 as the same schematic.

• Mentioned in
• Electronics World, Vol. 61, N° 5, Mayo de 1959

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 476 folder 7 date 3-60)

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
