L-12 9 Tube Battery Receiver
Lafayette Radio & TV Corp; New York (NY)
- País
- Estados Unidos
- Fabricante / Marca
- Lafayette Radio & TV Corp; New York (NY)
- Año
- 1932/1933
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 45986
-
- alternative name: Wholesale Radio
Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.
- Numero de valvulas
- 9
- Principio principal
- Superheterodino con paso previo de RF; ZF/IF 175 kHz; 3 Etapas de AF
- Número de circuitos sintonía
- 6 Circuíto(s) AM
- Gama de ondas
- OM (onda media) solamente
- Tensión de funcionamiento
- Baterías recargables o pilas / 4,5 & 180 & -22.5 Volt
- Altavoz
- Altavoz dinámico (de imán permanente)
- Material
- Madera
- de Radiomuseum.org
- Modelo: L-12 9 Tube Battery Receiver - Lafayette Radio & TV Corp; New
- Forma
- Consola baja, patas más cortas del 50%.
- Ancho, altura, profundidad
- 24 x 42 x 14.5 inch / 610 x 1067 x 368 mm
- Anotaciones
- The Lafayette model L-11 is a 9 tube battery superhet as chassis with permanent magnetic dynamic speaker - less batteries and tubes. For the same scheamtic (Rider's 5-10, Form 378-J) L-12 is the chassis with console cabinet less tubes. They have a push-pull output. "A" = 2 to 4 volts, "B" 135 volts, "C" = 10.5 volts. Easy vision tuning meter, automatic bleeder circuit, full range tone control. Sensitivity is 2 millivolts per meter.
Tubes and Accessories: 9 tubes $ 9.75, Eveready 2 volt Air Cell $ 5.95, Set of "B" and "C" batteries (4 x 45 volt "B" 4.5 volts and "C" 22.5 volts. See picture details and see details and summaries for the models of this catalog no. 53 for 1933 (Season 1932/33).
- Precio durante el primer año
- 44.00 $
- Ext. procedencia de los datos
- Ernst Erb

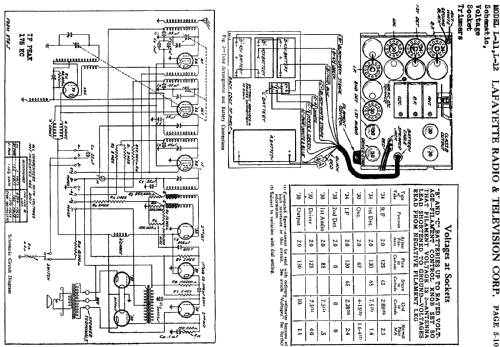

- Referencia esquema
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Documentación / Esquemas (1)
- Lafayette Radio Catalog (Lafayette catalog no. 53 for 1933, copyrighted 1932, page 20.)
