• Country
• United States of America (USA)

• Manufacturer / Brand
• Lafayette Radio & TV Corp; New York (NY)

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 139898

• • alternative name: Wholesale Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

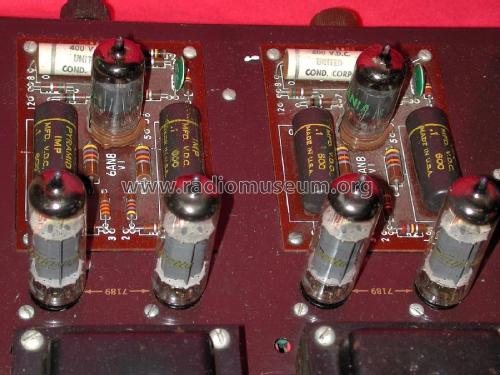

• 6AN8 7189 7189 6AN8 7189 7189 GZ34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

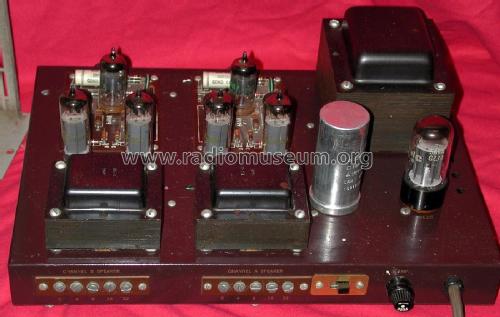

• Model: LA-310 - Lafayette Radio & TV Corp; New

• Shape
• Tablemodel, low profile (big size).

• Notes
• Sams photofact set 504 folder 13 date 10-60 features the Lafayette models KT-310 and LA-310 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 504 folder 13 date 10-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
