• Year
  • 1972
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 171186
    • alternative name: Wholesale Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 20
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 117; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

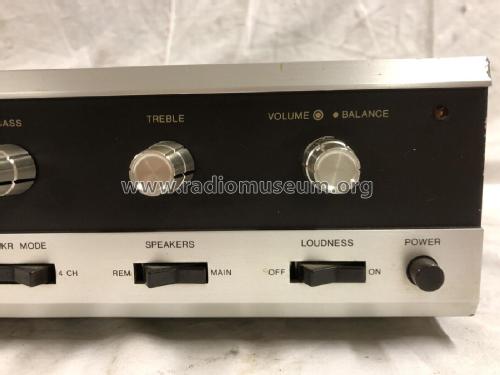

  • Model: LA-375 - Lafayette Radio & TV Corp; New
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 270 x 80 x 210 mm / 10.6 x 3.1 x 8.3 inch
  • Notes
  • Estereo.
    Precio en Italia Enero 1973 72.000 Liras.
  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Literature/Schematics (1)
  • Anuncio Revista CQ Elettronica 01/1973
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
