Lafayette Totem

Lafayette Radio & TV Corp; New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Commercial Transmitter & Receiver (TRX not Amateur)
  • Radiomuseum.org ID
  • 306198
    • alternative name: Wholesale Radio

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 5 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Lafayette Totem - Lafayette Radio & TV Corp; New
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 240 x 90 x 210 mm / 9.4 x 3.5 x 8.3 inch
  • Notes

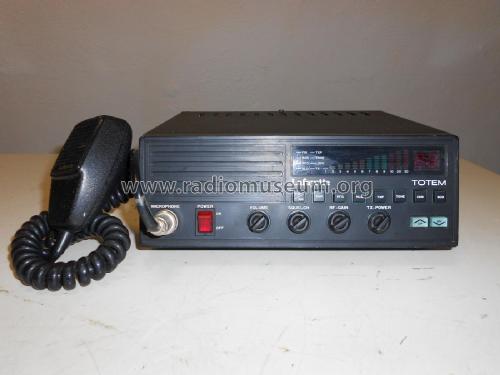

  • 40 channels citizen band 27 Mhz - volume / squelch / RF-gain / TX-power control - AM / FM - RGR - RFG - NLD - TXP - TONE - CH9 - SCD - Up / down channel buttons - front display for visu channels - S / meter and LED power to LED scale - ignition switch - socket for ext speaker - fuse 0.5 A - power consumption 45 watts - output power: 5 watts max. - 50 Ω antenna impedance.

    40 canali citizen band 27 Mhz - controllo volume/squelch/RF-gain/TX-power - selettori AM/FM - RGR - RFG - NLD - TXP - TONE - CH9 - SCD - tasti Up/down channel - display frontale per visulaizzare i canali - S/meter e power TX a scala di led - interruttore accensione - presa per ext speaker - fuse 0,5 A - consumo 45 watt - potenza d'uscita: 5 watt max. - impedenza antenna 50 Ω.

  • Net weight (2.2 lb = 1 kg)
  • 2.3 kg / 5 lb 1.1 oz (5.066 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
