P.A. Tuner
Lafayette Radio & TV Corp; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1935 ?
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 160426
-
- alternative name: Wholesale Radio

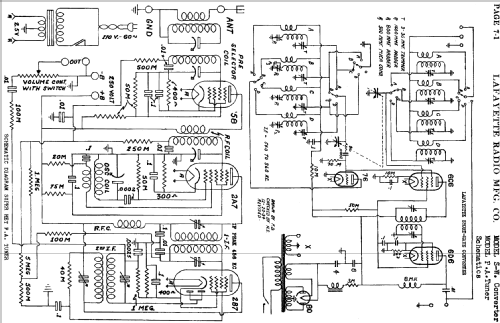

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Tuned circuits
- 8 AM circuit(s)
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: P.A. Tuner - Lafayette Radio & TV Corp; New
- Notes
- "A" voltage from internal 110V AC power supply; 250V DC "B" voltage from external amplifier.
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
