Stereophonic Amplifier LA-260

Stereophonic Amplifier LA-260; Lafayette Radio & TV (ID = 2096540) Ampl/Mixer Stereophonic Amplifier LA-260; Lafayette Radio & TV (ID = 2096541) Ampl/Mixer

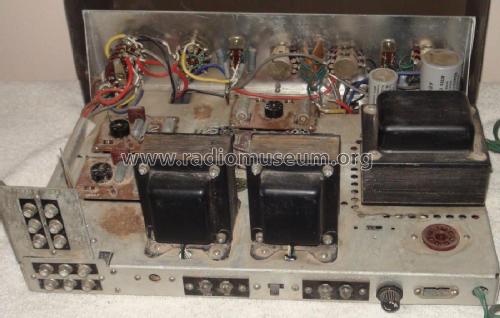

Stereophonic Amplifier LA-260; Lafayette Radio & TV (ID = 2098184) Ampl/Mixer Stereophonic Amplifier LA-260; Lafayette Radio & TV (ID = 2098186) Ampl/Mixer
Stereophonic Amplifier LA-260; Lafayette Radio & TV (ID = 2098188) Ampl/Mixer Stereophonic Amplifier LA-260; Lafayette Radio & TV (ID = 2098190) Ampl/Mixer
Use red slider bar for more.
Stereophonic Amplifier LA-260; Lafayette Radio & TV (ID = 2096540) Ampl/Mixer
Lafayette Radio & TV: Stereophonic Amplifier LA-260 [Ampl/Mixer] ID = 2096540 1400x636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereophonic Amplifier LA-260, Lafayette Radio & TV Corp; New York (NY):
aus ebay, #182484424205, Verkäufer greengirl613

Country:  United States of America (USA)
Manufacturer / Brand:  Lafayette Radio & TV Corp; New York (NY)
alternative name

Wholesale Radio
Year: 1964 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 10: 12AX7 12AX7 12AX7 6BL8 6BL8 6BQ5 6BQ5 6BQ5 6BQ5 5AR4
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Stereophonic Amplifier LA-260 - Lafayette Radio & TV Corp; New
Material Metal case
Shape Book-shelf unit.
Notes

Stereo audio amplifier, with tape out and headphone jacks in the front.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Folder 971 - See Contents, Nov. 1968)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
