• Year
  • 1925
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 46077

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • from Radiomuseum.org

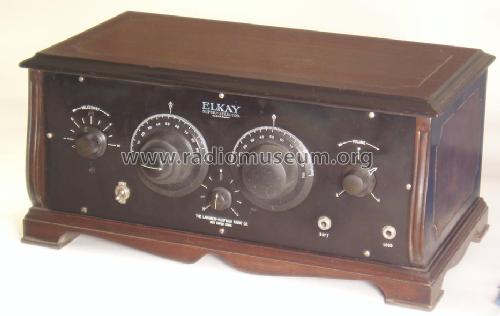

  • Model: Elkay Super Selector 4-S - Langbein-Kaufman Radio Co.,
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 20 x 11.5 x 9 inch / 508 x 292 x 229 mm
  • Notes
  • "S" in model number 4 stands for set sold finished with serial number, as opposed to "K", sold as a kit Two dials (primary tuning control knobs)
  • Net weight (2.2 lb = 1 kg)
  • 18 lb (18 lb 0 oz) / 8.172 kg
  • Price in first year of sale
  • 70.00 $
  • External source of data
  • Ernst Erb
