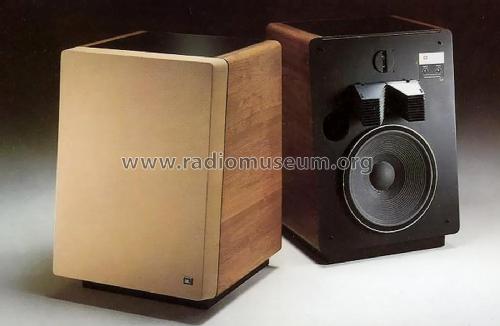

3-Way Speaker System L300

3-Way Speaker System L300; Lansing, James B. (ID = 1960867) Speaker-P
3-Way Speaker System L300; Lansing, James B. (ID = 1960861) Speaker-P 3-Way Speaker System L300; Lansing, James B. (ID = 1960862) Speaker-P
3-Way Speaker System L300; Lansing, James B. (ID = 1960863) Speaker-P 3-Way Speaker System L300; Lansing, James B. (ID = 1960864) Speaker-P
3-Way Speaker System L300; Lansing, James B. (ID = 1960865) Speaker-P 3-Way Speaker System L300; Lansing, James B. (ID = 1960866) Speaker-P
3-Way Speaker System L300; Lansing, James B. (ID = 1960868) Speaker-P 3-Way Speaker System L300; Lansing, James B. (ID = 1960869) Speaker-P
Use red slider bar for more.
3-Way Speaker System L300; Lansing, James B. (ID = 1960861) Speaker-P
Lansing, James B.: 3-Way Speaker System L300 [Speaker-P] ID = 1960861 1400x915
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3-Way Speaker System L300, Lansing, James B. (JBL), Los Angeles, CA:
Lansing Sales Brochure

Country:  United States of America (USA)
Manufacturer / Brand:  Lansing, James B. (JBL), Los Angeles, CA
Brand

JBL
Year: 1978 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 3-Way Speaker System L300 - Lansing, James B. JBL, Los
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 584 x 803 x 572 mm / 23 x 31.6 x 22.5 inch
Notes

JBL 3-Way Speaker System Model L300.
Max. recommended Amplifier Power 300 Watts
Power Capacity 150 Watts continuous program
Nominal impedance 8 Ohms, 93dB W/m
Crossover Frequencies: 800, 8500 Hz
Finish: Oiled Walnut
Grille:
Three-dimensional, stretch fabric
Color Options Blue, Black, Brown, Camel

Drivers:
JBL 136A - Low-pass Driver 380mm (102mm Voice Coil, 5,4kg, 12000 Gauss)
JBL LE85 - Mid Range Compression 25mm (L92 Lens, 4,5kg, 19000 Gauss)
JBL 077 - Ultra-High Frequency Transducer (Horn 79x18mm, 1,5kg, 16500 Gauss)

Net weight (2.2 lb = 1 kg) 66 kg / 145 lb 6 oz (145.374 lb)
Mentioned in -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
