JBL 001 loudspeaker system C35

JBL 001 loudspeaker system C35; Lansing, James B. (ID = 606229) Speaker-P JBL 001 loudspeaker system C35; Lansing, James B. (ID = 606231) Speaker-P
JBL 001 loudspeaker system C35; Lansing, James B. (ID = 606232) Speaker-P JBL 001 loudspeaker system C35; Lansing, James B. (ID = 606233) Speaker-P
JBL 001 loudspeaker system C35; Lansing, James B. (ID = 606234) Speaker-P JBL 001 loudspeaker system C35; Lansing, James B. (ID = 606235) Speaker-P
JBL 001 loudspeaker system C35; Lansing, James B. (ID = 606236) Speaker-P
Use red slider bar for more.
JBL 001 loudspeaker system C35; Lansing, James B. (ID = 606229) Speaker-P
Lansing, James B.: JBL 001 loudspeaker system C35 [Speaker-P] ID = 606229 304x442
Select picture or schematic to display from thumbnails on the right and click for download.
For model JBL 001 loudspeaker system C35, Lansing, James B. (JBL), Los Angeles, CA:
aus ebay, mit Erlaubnis des Verkäufers mono

Country:  United States of America (USA)
Manufacturer / Brand:  Lansing, James B. (JBL), Los Angeles, CA
Brand

JBL
Year: 1965 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: JBL 001 loudspeaker system C35 - Lansing, James B. JBL, Los
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 24 x 38.5 x 16 inch / 610 x 978 x 406 mm

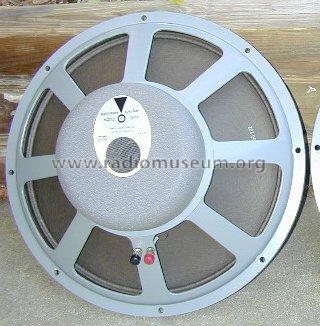

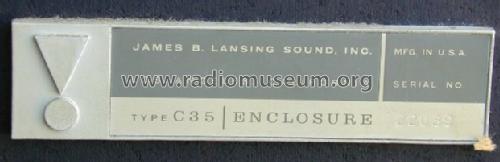

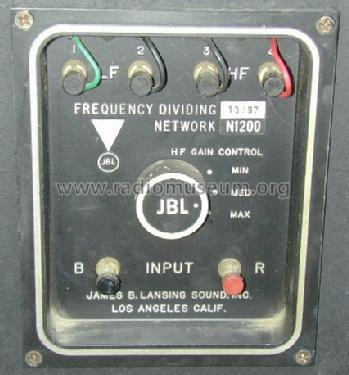

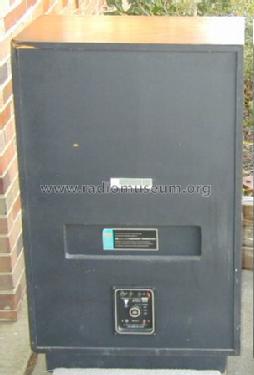

Notes The 001 loudspeaker system consisted of a 130A Low Frequency Woofer, a 175DLH Horn/Driver and N1200 Crossover in a C35 cabinet.
Net weight (2.2 lb = 1 kg) 48 kg / 105 lb 11.6 oz (105.727 lb)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
