JBL 250Ti

JBL 250Ti; Lansing, James B. (ID = 675768) Speaker-P
Use red slider bar for more.
JBL 250Ti; Lansing, James B. (ID = 675768) Speaker-P

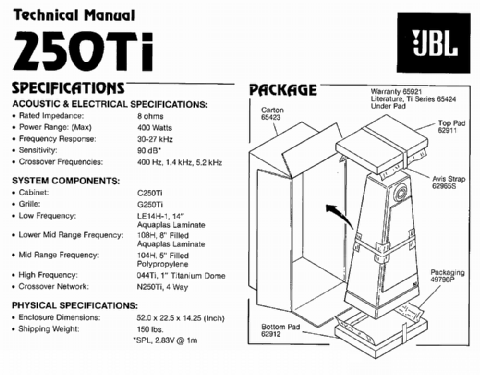

Lansing, James B.: JBL 250Ti [Speaker-P] ID = 675768 822x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model JBL 250Ti, Lansing, James B. (JBL), Los Angeles, CA:
Prospekt

Country:  United States of America (USA)
Manufacturer / Brand:  Lansing, James B. (JBL), Los Angeles, CA
Brand

JBL
Year: 1984 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: JBL 250Ti - Lansing, James B. JBL, Los
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 572 x 1321 x 362 mm / 22.5 x 52 x 14.3 inch
Notes 4 Weg-Stand-Box, 200 Watt Musik, 8 Ohm, 90 dB/W/m, 30 - 27.000Hz.
Trennfrequenzen 400Hz, 1.400Hz, 5.200Hz.
360mm Woofer (LE14H-1), 200mm MT (108H), 130mm MT (104H), HT (044Ti).
Net weight (2.2 lb = 1 kg) 68 kg / 149 lb 12.5 oz (149.78 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
