Linear Efficiency Mid Range Speaker LE 5-2

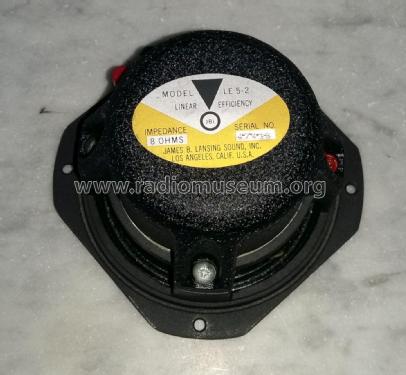

Linear Efficiency Mid Range Speaker LE 5-2; Lansing, James B. (ID = 2520993) Speaker-P Linear Efficiency Mid Range Speaker LE 5-2; Lansing, James B. (ID = 2520992) Speaker-P
Use red slider bar for more.

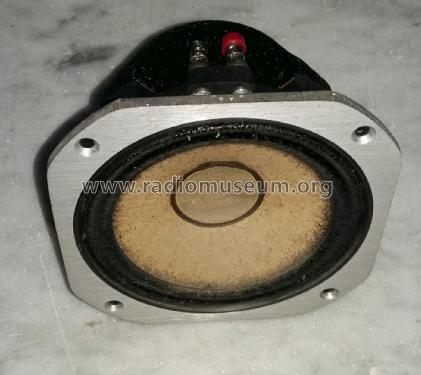

Linear Efficiency Mid Range Speaker LE 5-2; Lansing, James B. (ID = 2520993) Speaker-P
Lansing, James B.: Linear Efficiency Mid Range Speaker LE 5-2 [Speaker-P] ID = 2520993 1400x1245
Select picture or schematic to display from thumbnails on the right and click for download.
For model Linear Efficiency Mid Range Speaker LE 5-2, Lansing, James B. (JBL), Los Angeles, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Lansing, James B. (JBL), Los Angeles, CA
Brand

JBL
Year: 1976 ?? Category: Loudspeaker, headphone or earphone
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Linear Efficiency Mid Range Speaker LE 5-2 - Lansing, James B. JBL, Los
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 114 x 114 x 80 mm / 4.5 x 4.5 x 3.1 inch
Notes

Midrange louspeaker, frequency from 1500 to 6000 Hz.

Total chassis diameter 13 cm; cone diameter 10 cm.

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
