For model Loudspeaker System 4408, Lansing, James B. (JBL), Los Angeles, CA:
Lansing Catalogue

Country:  United States of America (USA)
Manufacturer / Brand:  Lansing, James B. (JBL), Los Angeles, CA
Brand

JBL
Year: 1987 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Loudspeaker System 4408 - Lansing, James B. JBL, Los
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 305 x 438 x 293 mm / 12 x 17.2 x 11.5 inch
Notes

2-Way Speaker System Model JBL 4408.

Frequency Response: 50Hz to 20kHz

Power Handling: 100 Watt

Crossover : 2500Hz

Impedance: 8Ω

Sensitivity: 89dB

Drivers:
Bass: 1x 200mm cone (116H-2)
Tweeter: 1x 25mm pure titanium dome (035TiA)

Finish: oiled walnut

Net weight (2.2 lb = 1 kg) 11.8 kg / 25 lb 15.9 oz (25.991 lb)

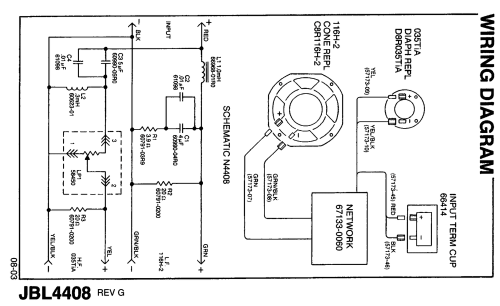

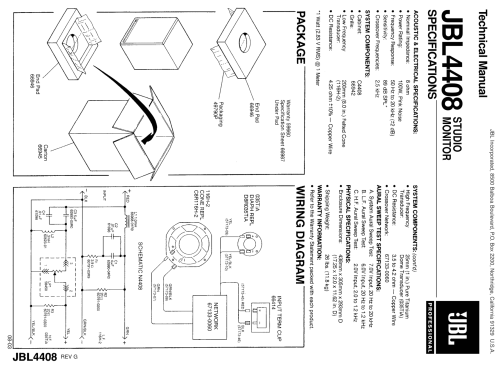

Mentioned in -- Original-techn. papers. (Technical Manual)
