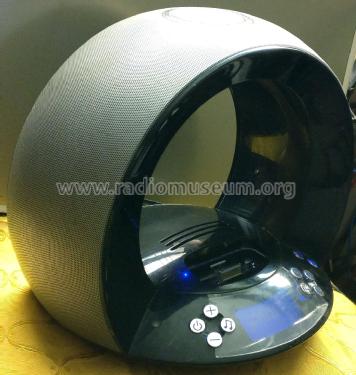

For model JBL On Time, Harman Kardon; New York

Country:  United States of America (USA)
Manufacturer / Brand:  Harman Kardon; New York
Year: 2009 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Radio with other functions
Power type and voltage Powered by external power supply or a main unit. / 15 / Backup battery AAA: 3 x 1.5 Volt
Loudspeaker 5 Loudspeakers / Ø 4.5 cm = 1.8 inch
Power out 12 W (undistorted)
from Radiomuseum.org Model: JBL On Time - Harman Kardon; New York
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 255 x 255 x 225 mm / 10 x 10 x 8.9 inch
Notes

Harman Multimedia - input impedence > 5 Kohm - signal to noise ratio > 85db - frequency responce 70 Hz - 20 Khz - slot per Ipod/Mp3 - sub out - Aux in - AM external antenna - external power 15 V / 1.1 A

Aux Input: In addition to the iPod dock connector, On Time has a female 3.5mm mini-jack stereo audio input. This input can be used to input audio from portable MP3 players, CD players, desktop and laptop computers, and satellite radio receivers.

Subwoofer Output: The On Time has a female 3.5mm minijack output for use with an optional powered subwoofer.

OnePoint iPod Connector: The back panel features a female iPod dock connector. This allows you to plug a standard iPod cable (male dock connector on one end and a male USB-Type A connector on the other end) into your computer for synchronizing your iPod.

Made in China

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
