- Country
- United States of America (USA)
- Manufacturer / Brand
- Laurehk Radio Mfg. Co.; Wayne, Mich.
- Year
- 1942 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 46095
-
- Brand: Musique

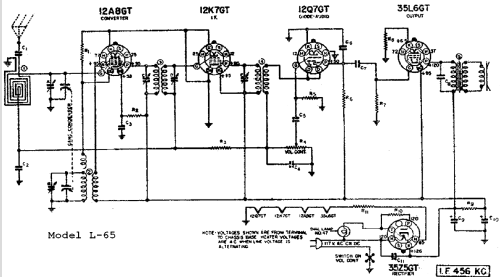

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
- from Radiomuseum.org
- Model: L-65 - Laurehk Radio Mfg. Co.; Wayne,
- Notes
- Built-in loop antenna as first RF circuit.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Other Models
-
Here you find 12 models, 3 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Laurehk Radio Mfg. Co.; Wayne, Mich.
