TR-1190

TR-1190; Lavis S.A., Labelson (ID = 199598) Radio TR-1190; Lavis S.A., Labelson (ID = 199599) Radio
TR-1190; Lavis S.A., Labelson (ID = 199600) Radio TR-1190; Lavis S.A., Labelson (ID = 199601) Radio
TR-1190; Lavis S.A., Labelson (ID = 1578801) Radio TR-1190; Lavis S.A., Labelson (ID = 1578802) Radio
TR-1190; Lavis S.A., Labelson (ID = 1578805) Radio TR-1190; Lavis S.A., Labelson (ID = 1578806) Radio
TR-1190; Lavis S.A., Labelson (ID = 1578807) Radio TR-1190; Lavis S.A., Labelson (ID = 1578808) Radio
Use red slider bar for more.
TR-1190; Lavis S.A., Labelson (ID = 199598) Radio

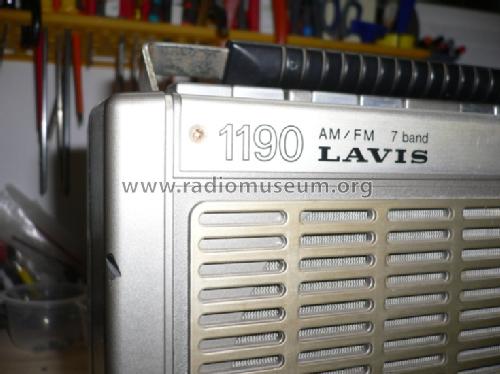

Lavis S.A., Labelson: TR-1190 [Radio] ID = 199598 640x468

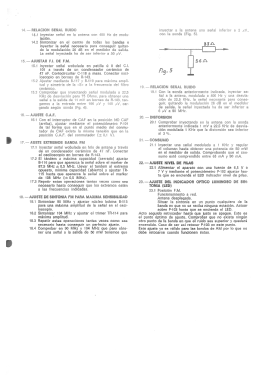

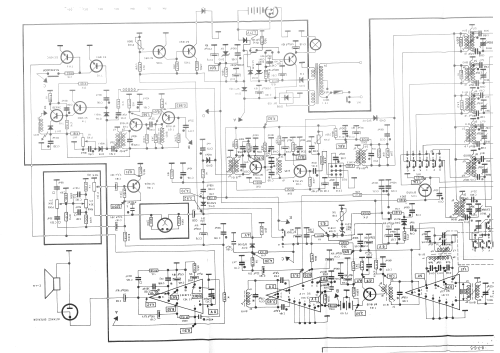

Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-1190, Lavis S.A., Labelson; Barcelona

Country:  Spain
Manufacturer / Brand:  Lavis S.A., Labelson; Barcelona
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15:
Main principle Superhet, double/triple conversion
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 128/220; (6 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: TR-1190 - Lavis S.A., Labelson;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 210 x 90 mm / 13.8 x 8.3 x 3.5 inch
Notes

3 Circuitos integrados.
19 diodos,
1 puente rectificador.
2 led.
2 filtros cerámicos

Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
