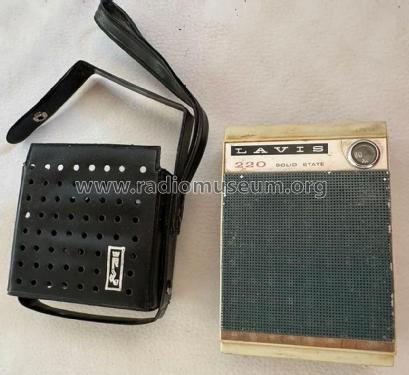

220; Lavis S.A., Labelson (ID = 689400) Radio
Lavis S.A., Labelson: 220 [Radio] ID = 689400 633x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model 220, Lavis S.A., Labelson; Barcelona

Country:  Spain
Manufacturer / Brand:  Lavis S.A., Labelson; Barcelona
Year: 1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: 220 - Lavis S.A., Labelson;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 71 x 104 x 39 mm / 2.8 x 4.1 x 1.5 inch
Net weight (2.2 lb = 1 kg) 0.230 kg / 0 lb 8.1 oz (0.507 lb)

Model page created by Salvador Galan-Ocaña. See "Data change" for further contributors.
