T-326 (TR-326)

T-326 ; Lavis S.A., Labelson (ID = 1883231) Radio

T-326 ; Lavis S.A., Labelson (ID = 1883232) Radio

T-326 ; Lavis S.A., Labelson (ID = 1883233) Radio

T-326 ; Lavis S.A., Labelson (ID = 1883234) Radio

T-326 ; Lavis S.A., Labelson (ID = 1883235) Radio

T-326 ; Lavis S.A., Labelson (ID = 1883236) Radio

T-326 ; Lavis S.A., Labelson (ID = 1883237) Radio
T-326 ; Lavis S.A., Labelson (ID = 1707125) Radio T-326 ; Lavis S.A., Labelson (ID = 1707126) Radio
T-326 ; Lavis S.A., Labelson (ID = 1707661) Radio T-326 ; Lavis S.A., Labelson (ID = 1769738) Radio
Use red slider bar for more.
T-326 ; Lavis S.A., Labelson (ID = 1707125) Radio

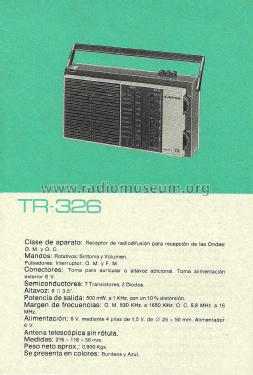

Lavis S.A., Labelson: T-326 [Radio] ID = 1707125 561x434
Select picture or schematic to display from thumbnails on the right and click for download.
For model T-326 (TR-326), Lavis S.A., Labelson; Barcelona

Country:  Spain
Manufacturer / Brand:  Lavis S.A., Labelson; Barcelona
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF194 BF194 BF194 SC108 SC108 AC187 AC188 1N541 SFD112
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Batteries / addl. power jack / 4 x 1,5 /6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.5 W (undistorted)
from Radiomuseum.org Model: T-326 - Lavis S.A., Labelson;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 216 x 116 x 56 mm / 8.5 x 4.6 x 2.2 inch
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (4) -- Schematic

Model page created by Ruben Garcia Bayon. See "Data change" for further contributors.
