VSM 609

VSM 609; Pathé-Marconi, Les (ID = 1874637) Radio

VSM 609; Pathé-Marconi, Les (ID = 1874638) Radio

VSM 609; Pathé-Marconi, Les (ID = 1874639) Radio

VSM 609; Pathé-Marconi, Les (ID = 1874640) Radio

VSM 609; Pathé-Marconi, Les (ID = 1874641) Radio

VSM 609; Pathé-Marconi, Les (ID = 1874642) Radio

VSM 609; Pathé-Marconi, Les (ID = 1874643) Radio

VSM 609; Pathé-Marconi, Les (ID = 1874644) Radio
VSM 609; Pathé-Marconi, Les (ID = 2314546) Radio VSM 609; Pathé-Marconi, Les (ID = 2314547) Radio
VSM 609; Pathé-Marconi, Les (ID = 2314549) Radio VSM 609; Pathé-Marconi, Les (ID = 1280276) Radio
VSM 609; Pathé-Marconi, Les (ID = 1280277) Radio VSM 609; Pathé-Marconi, Les (ID = 2314548) Radio
Use red slider bar for more.
VSM 609; Pathé-Marconi, Les (ID = 2314546) Radio
Pathé-Marconi, Les: VSM 609 [Radio] ID = 2314546 1400x680
Select picture or schematic to display from thumbnails on the right and click for download.
For model VSM 609, Pathé-Marconi, Les IME (I.M.E.), La Voix de son Maître; Paris

Country:  France
Manufacturer / Brand:  Pathé-Marconi, Les IME (I.M.E.), La Voix de son Maître; Paris
alternative name

La Voix de son Maître
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF195 BF195 BF195 BF195 SN1_Transistor SP2_Transistor AC142 or. AC193 or. AC153 or. AC180 AC141 or. AC194 or. AC176 or. AC181
Main principle Superheterodyne (common); ZF/IF 480/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: VSM 609 - Pathé-Marconi, Les IME I.M.E.,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 188 x 83 mm / 11.2 x 7.4 x 3.3 inch
Notes

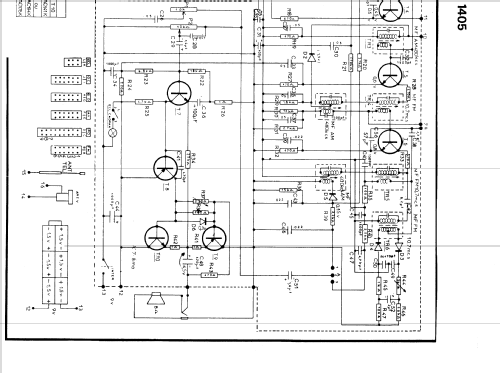

 Chassis type 1405

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
