Oscilloscope LBO-517

Oscilloscope LBO-517; Leader Electronics (ID = 434639) Equipment
Use red slider bar for more.
Oscilloscope LBO-517; Leader Electronics (ID = 434639) Equipment

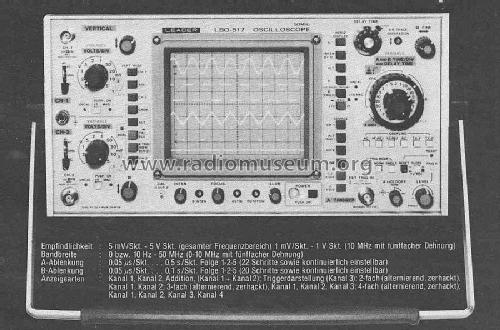

Leader Electronics: Oscilloscope LBO-517 [Equipment] ID = 434639 900x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope LBO-517, Leader Electronics Corp.; Yokohama:
Funkschau 3.1982

Country:  Japan
Manufacturer / Brand:  Leader Electronics Corp.; Yokohama
Year: 1982 ? Category: Service- or Lab Equipment
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope LBO-517 - Leader Electronics Corp.;
Material Metal case
Shape Tablemodel, low profile (big size).
Notes Vierkanal/Achtstrahl, Messbereich 10 Hz bis 50 MHz mit fünffacher Dehnung, Empfindlichkeit 5 mV bis 5 V gesamter Frequenzbereich.
Price in first year of sale 5'611.00 DM
Mentioned in Funkschau (Katalog Mütron 1984)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
