Oscilloscope LBO-518

Oscilloscope LBO-518; Leader Electronics (ID = 1650103) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650104) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650105) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650107) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650109) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650111) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650113) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650115) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650116) Equipment

Oscilloscope LBO-518; Leader Electronics (ID = 1650117) Equipment
Oscilloscope LBO-518; Leader Electronics (ID = 432436) Equipment Oscilloscope LBO-518; Leader Electronics (ID = 432439) Equipment
Oscilloscope LBO-518; Leader Electronics (ID = 432441) Equipment Oscilloscope LBO-518; Leader Electronics (ID = 432438) Equipment
Oscilloscope LBO-518; Leader Electronics (ID = 432440) Equipment Oscilloscope LBO-518; Leader Electronics (ID = 432442) Equipment
Use red slider bar for more.
Oscilloscope LBO-518; Leader Electronics (ID = 432436) Equipment
Leader Electronics: Oscilloscope LBO-518 [Equipment] ID = 432436 900x412
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope LBO-518, Leader Electronics Corp.; Yokohama:
Eigene Sammlung

Country:  Japan
Manufacturer / Brand:  Leader Electronics Corp.; Yokohama
Year: 1984 ?? Category: Service- or Lab Equipment
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope LBO-518 - Leader Electronics Corp.;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 360 x 160 x 460 mm / 14.2 x 6.3 x 18.1 inch

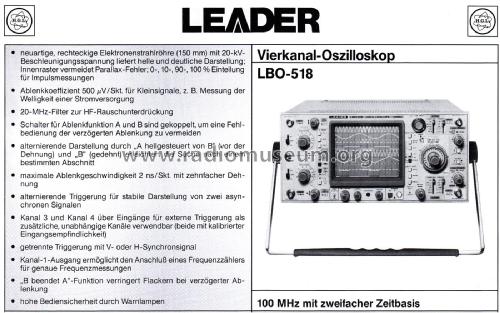

Notes 100 MHz, 4 Kanal, Doppelzeitablenkung mit Schleife, CRT-Anzeige mit internen Fadenkreuz, acht Signalanzeigen von vier unterschiedlichen Eingängen möglich, Meßfläche 85 x 105 cm.
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)
Price in first year of sale 6'201.00 DM
Source of data - - Data from my own collection

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
