Audio Generator LAG-120A

Audio Generator LAG-120A; Leader Electronics (ID = 216508) Equipment
Audio Generator LAG-120A; Leader Electronics (ID = 118099) Equipment Audio Generator LAG-120A; Leader Electronics (ID = 218912) Equipment
Audio Generator LAG-120A; Leader Electronics (ID = 478320) Equipment Audio Generator LAG-120A; Leader Electronics (ID = 1313715) Equipment
Audio Generator LAG-120A; Leader Electronics (ID = 1313716) Equipment Audio Generator LAG-120A; Leader Electronics (ID = 1666087) Equipment
Use red slider bar for more.
Audio Generator LAG-120A; Leader Electronics (ID = 118099) Equipment
Leader Electronics: Audio Generator LAG-120A [Equipment] ID = 118099 571x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audio Generator LAG-120A, Leader Electronics Corp.; Yokohama

Country:  Japan
Manufacturer / Brand:  Leader Electronics Corp.; Yokohama
Year: 1973–1988 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 15:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 200-230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Audio Generator LAG-120A - Leader Electronics Corp.;
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 132 x 170 x 315 mm / 5.2 x 6.7 x 12.4 inch
Notes Output: sine 3 Vrms, square 3 Vpp; 9 Hz to 1 MHz ±0.5 dB (5 ranges); impedance 600 Ω, attenuator 0 to -50 dB.
Sync input.
Alternative AC input 100-115 V.
Accessory LT-2044 (600 Ω terminator).
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 699.00 DM
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in RIM electronic 88

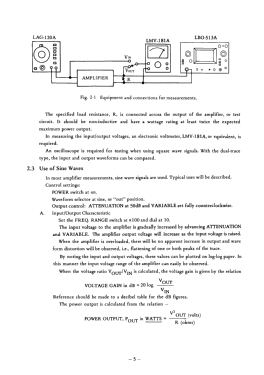

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Urs Gloor. See "Data change" for further contributors.
