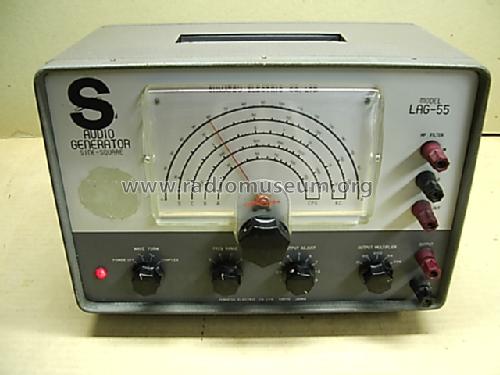

Audio Generator LAG-55

Audio Generator LAG-55; Leader Electronics (ID = 238549) Equipment
Audio Generator LAG-55; Leader Electronics (ID = 2435026) Equipment Audio Generator LAG-55; Leader Electronics (ID = 2435025) Equipment
Audio Generator LAG-55; Leader Electronics (ID = 820365) Equipment Audio Generator LAG-55; Leader Electronics (ID = 820366) Equipment
Audio Generator LAG-55; Leader Electronics (ID = 238548) Equipment
Use red slider bar for more.
Audio Generator LAG-55; Leader Electronics (ID = 2435026) Equipment
Leader Electronics: Audio Generator LAG-55 [Equipment] ID = 2435026 1134x964
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audio Generator LAG-55, Leader Electronics Corp.; Yokohama

Country:  Japan
Manufacturer / Brand:  Leader Electronics Corp.; Yokohama
Year: 1963 Category: Service- or Lab Equipment
Valves / Tubes 5: 6AV6 12AT7 6AR5 6AR5 6X4
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100; 115; 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Audio Generator LAG-55 - Leader Electronics Corp.;
Material Metal case
Dimensions (WHD) 320 x 215 x 170 mm / 12.6 x 8.5 x 6.7 inch
Notes Audio Generator LAG-55.
Sine, Square; 20–200000 Hz.
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Source of data -- Original prospect or advert

Model page created by Hugo Sneyers. See "Data change" for further contributors.
