Signal Generator LSG-200

Signal Generator LSG-200; Leader Electronics (ID = 1807253) Equipment

Signal Generator LSG-200; Leader Electronics (ID = 238030) Equipment
Signal Generator LSG-200; Leader Electronics (ID = 238029) Equipment
Use red slider bar for more.
Signal Generator LSG-200; Leader Electronics (ID = 238029) Equipment
Leader Electronics: Signal Generator LSG-200 [Equipment] ID = 238029 501x368
Select picture or schematic to display from thumbnails on the right and click for download.
For model Signal Generator LSG-200, Leader Electronics Corp.; Yokohama

Country:  Japan
Manufacturer / Brand:  Leader Electronics Corp.; Yokohama
Year: 1963 Category: Service- or Lab Equipment
Valves / Tubes 3: 6BD6 6BD6 6X4
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Signal Generator LSG-200 - Leader Electronics Corp.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 200 x 125 mm / 11.8 x 7.9 x 4.9 inch
Notes All Wave Signal Generator 100 kHz to 36 MHz.
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)

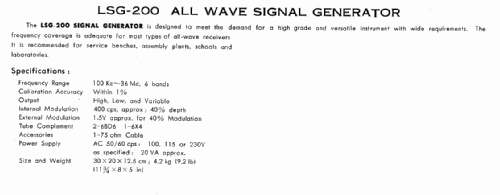

Source of data -- Original prospect or advert

Model page created by Hugo Sneyers. See "Data change" for further contributors.
