• Country
• Japan

• Manufacturer / Brand
• Leader Electronics Corp.; Yokohama

• Year
• 1973 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 80534

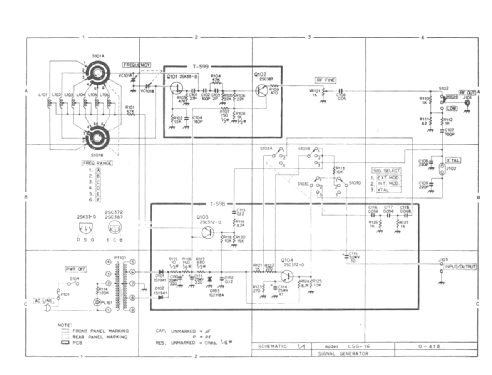

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 100-115 / 220-230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

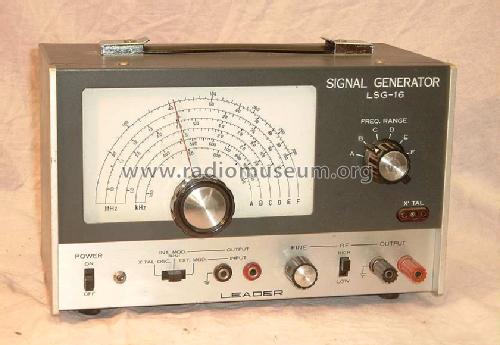

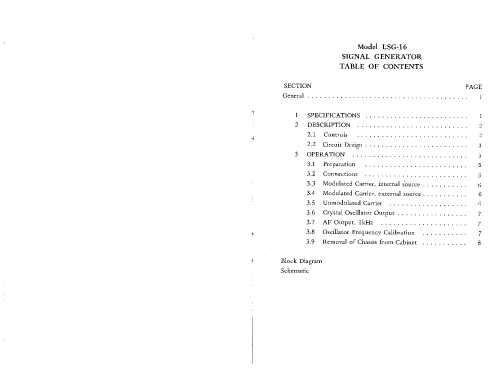

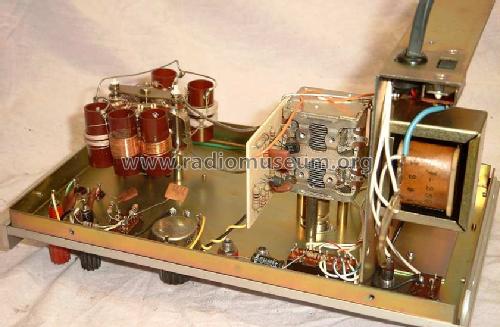

• Model: Signal Generator LSG-16 - Leader Electronics Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 250 x 150 x 130 mm / 9.8 x 5.9 x 5.1 inch

• Notes

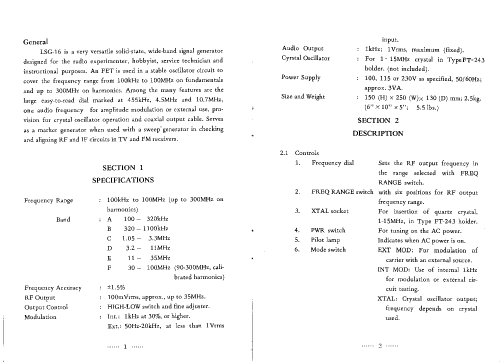

• RF generator 100 kHz - 100 MHz in six ranges (up to 300 MHz with calibrated harmonics). Internal and external modulation, provision for xtal operation. 1 kHz AF output.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 235.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.

• Other Models

• Here you find 122 models, 115 with images and 75 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
