Synchroscope LBO-5SA

Synchroscope LBO-5SA; Leader Electronics (ID = 294728) Equipment Synchroscope LBO-5SA; Leader Electronics (ID = 294729) Equipment
Use red slider bar for more.
Synchroscope LBO-5SA; Leader Electronics (ID = 294728) Equipment

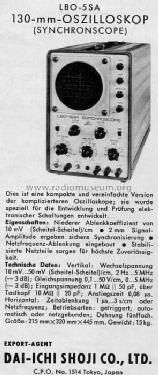

Leader Electronics: Synchroscope LBO-5SA [Equipment] ID = 294728 296x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Synchroscope LBO-5SA, Leader Electronics Corp.; Yokohama:
FS1966/18

Country:  Japan
Manufacturer / Brand:  Leader Electronics Corp.; Yokohama
Year: 1966 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Synchroscope LBO-5SA - Leader Electronics Corp.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 215 x 320 x 445 mm / 8.5 x 12.6 x 17.5 inch
Notes 130mm oscilloscope, vertical amp: 2Hz to 5MHz; time: 1µs to 3s/cm.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Mentioned in Funkschau (1966 Heft 18 Seite 1412)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Leader Electronics Corp.; Yokohama
Here you find 117 models, 113 with images and 64 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
