6614 ; Lear Inc.; Grand (ID = 226816) Radio
Lear Inc.; Grand: 6614 [Radio] ID = 226816 642x436
Select picture or schematic to display from thumbnails on the right and click for download.

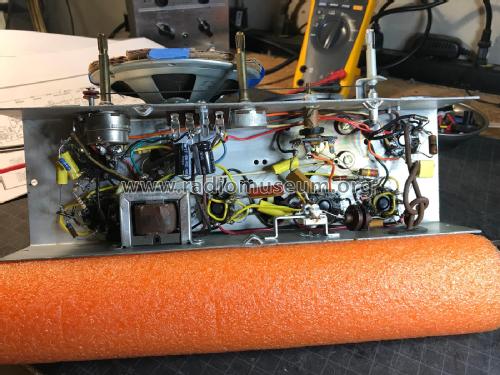

For model 6614, Lear Inc.; Grand Rapids and Los Angeles

Country:  United States of America (USA)
Manufacturer / Brand:  Lear Inc.; Grand Rapids and Los Angeles
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 6614 - Lear Inc.; Grand Rapids and
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13 x 8 x 7 inch / 330 x 203 x 178 mm
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 3, Folder 463-18)


All listed radios etc. from Lear Inc.; Grand Rapids and Los Angeles
Here you find 46 models, 27 with images and 40 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
