• Country
• France

• Manufacturer / Brand
• Ledez, R.; Bellevue (Seine & Oise)

• Year
• 1942 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 326638

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6M7 6Q7 25L6G 25L6G 25Z6G

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org

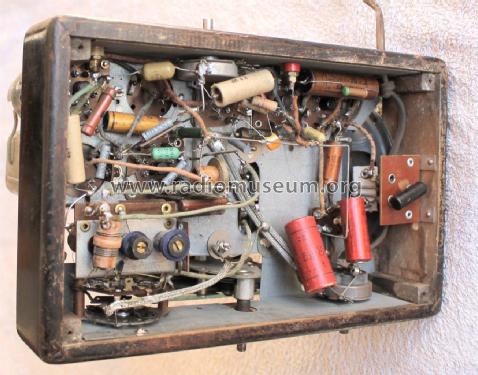

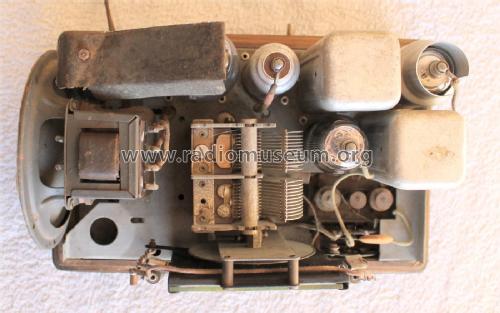

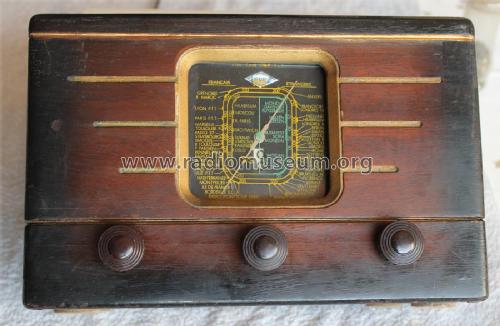

• Model: Minibloc L.F. Série T.C. - Ledez, R.; Bellevue Seine &

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 275 x 178 x 210 mm / 10.8 x 7 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 3.680 kg / 8 lb 1.7 oz (8.106 lb)

• Author
• Model page created by Philippe Harang. See "Data change" for further contributors.
