Wheatstone Bridge 5430-AM-1
Leeds & Northrup; Philadelphia
- Country
- United States of America (USA)
- Manufacturer / Brand
- Leeds & Northrup; Philadelphia
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 207917
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 3 x 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Wheatstone Bridge 5430-AM-1 - Leeds & Northrup; Philadelphia
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 215 x 165 x 175 mm / 8.5 x 6.5 x 6.9 inch
- Notes

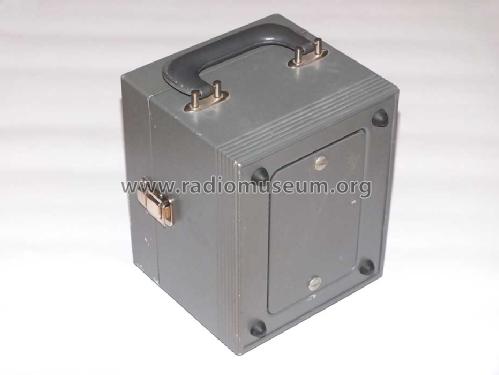

- Wheatstonesche Messbrücke, speziell für die Messung und Fehlerortung an Fernmeldeleitungen. Tragbares Gerät in Aluminiumgehäuse. Ausführung mit Holzgehäuse bekannt. Maße ohne Gummifüße, Tragegriff und Beschläge.
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by a member from D. See "Data change" for further contributors.
