• Year
  • 1977
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 122013

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org

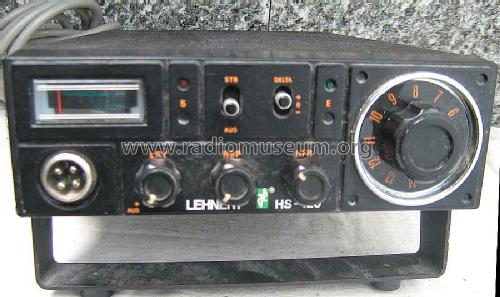

  • Model: HS-120 - Lehnert GmbH, Poppy;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 165 x 55 x 270 mm / 6.5 x 2.2 x 10.6 inch
  • Notes
  • Mit 24 Quarzen bestückt,

    Zwölf Kanäle (4 bis 15) im 27-MHz-Bereich, 0,5 Watt HF-Sendeleistung, AM. FTZ-Zulassungsnummer KF-089/77.

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
