SCR-3030

SCR-3030; Lehnert GmbH, Poppy; (ID = 1020035) Radio

SCR-3030; Lehnert GmbH, Poppy; (ID = 1020036) Radio

SCR-3030; Lehnert GmbH, Poppy; (ID = 1020038) Radio
SCR-3030; Lehnert GmbH, Poppy; (ID = 296636) Radio SCR-3030; Lehnert GmbH, Poppy; (ID = 1699570) Radio
SCR-3030; Lehnert GmbH, Poppy; (ID = 1699571) Radio SCR-3030; Lehnert GmbH, Poppy; (ID = 1699572) Radio
SCR-3030; Lehnert GmbH, Poppy; (ID = 1699573) Radio SCR-3030; Lehnert GmbH, Poppy; (ID = 1699574) Radio
SCR-3030; Lehnert GmbH, Poppy; (ID = 1699575) Radio SCR-3030; Lehnert GmbH, Poppy; (ID = 1699576) Radio
SCR-3030; Lehnert GmbH, Poppy; (ID = 1699577) Radio SCR-3030; Lehnert GmbH, Poppy; (ID = 1699578) Radio
Use red slider bar for more.
SCR-3030; Lehnert GmbH, Poppy; (ID = 296636) Radio
Lehnert GmbH, Poppy;: SCR-3030 [Radio] ID = 296636 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model SCR-3030, Lehnert GmbH, (Poppy); Saarbrücken

Country:  Germany
Manufacturer / Brand:  Lehnert GmbH, (Poppy); Saarbrücken
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)

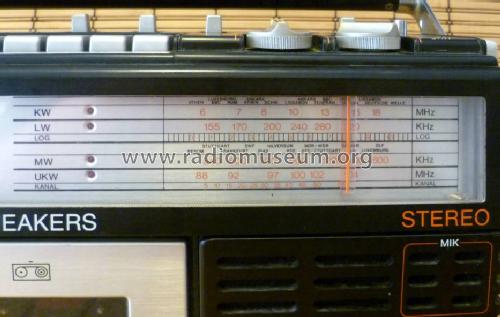

Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 220 / 12 Volt
Loudspeaker 4 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: SCR-3030 - Lehnert GmbH, Poppy;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 400 x 260 x 120 mm / 15.7 x 10.2 x 4.7 inch
Notes Stereogerät, AFC, KW 6-18 m, UKW 88-104 MHz.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Mentioned in - - Manufacturers Literature

Model page created by Rainer Goelsdorf. See "Data change" for further contributors.



All listed radios etc. from Lehnert GmbH, (Poppy); Saarbrücken
Here you find 77 models, 68 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
