For model Candia A Stereo Ch= Spezial I, Loewe 53273-Z, Leinetal GmbH & Co. KG, Kreiensen

Country:  Germany
Manufacturer / Brand:  Leinetal GmbH & Co. KG, Kreiensen
Year: 1972–1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 23:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Candia A Stereo Ch= Spezial I, Loewe 53273-Z - Leinetal GmbH & Co. KG,
Material Wooden case

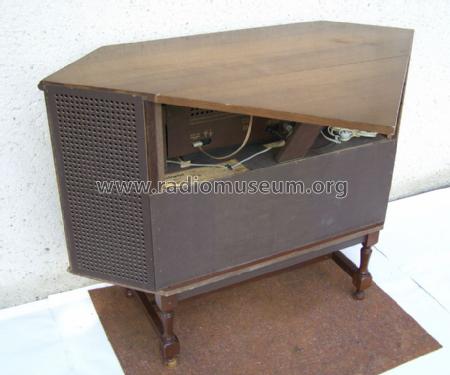

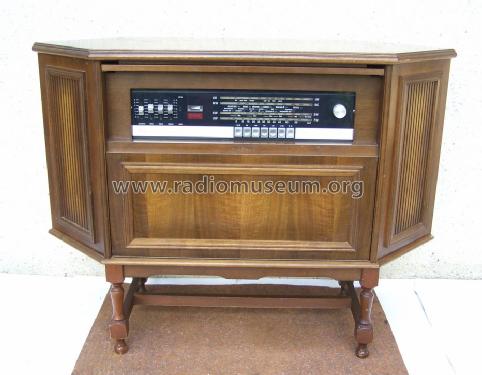

Shape Console with Push Buttons.
Dimensions (WHD) 1050 x 770 x 710 mm / 41.3 x 30.3 x 28 inch
Notes

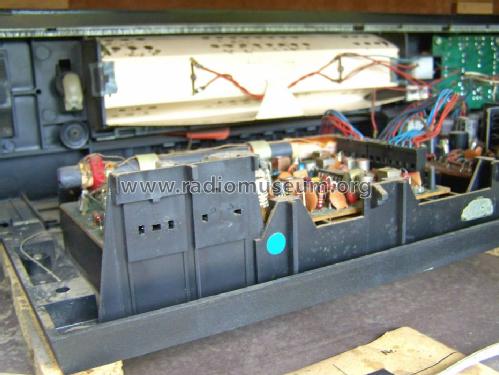

Rundfunk-Chassis = Loewe Opta Spezial I, Vollstereo, NF-Verstärker mit zwei Endstufen je 9 W; Phono-Chassis = Philips GC043 oder Philips GC047. Eckgerät!

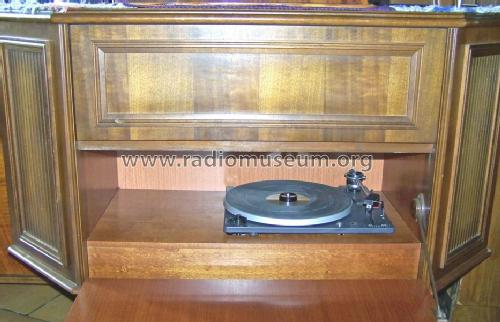

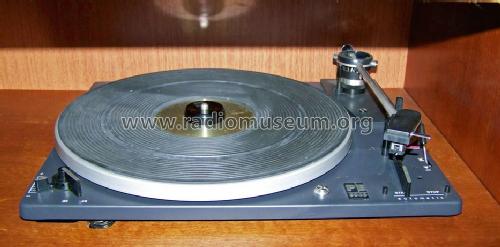

Phono -Chassis = Perpetuum Ebner modèle  PE 3040 après 1974 - 75

Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
External source of data Erb
Source of data Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Leinetal GmbH & Co. KG, Kreiensen
Here you find 105 models, 100 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
