• Country
• Germany

• Manufacturer / Brand
• Lembeck & Co.(Lembeck-Radio)

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15757

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF9 EL11 AZ11

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

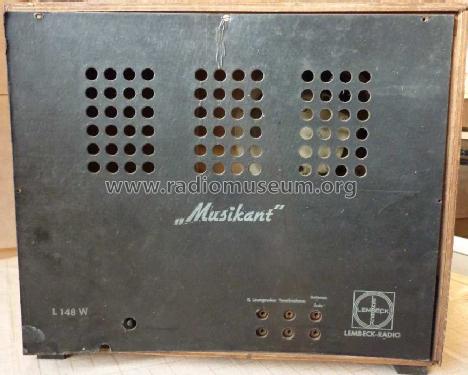

• Model: Musikant L148WN - Lembeck & Co.Lembeck-Radio

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 410 x 235 mm / 17.3 x 16.1 x 9.3 inch

• Notes
• runde Flutlichtskala in der Mitte.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 245.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in

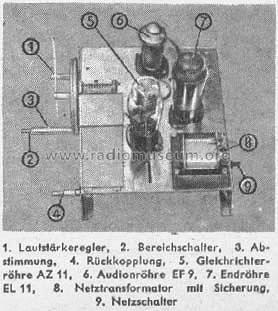

• Funk-Technik (FT) (1/1949, S 25, 26 / Daten und Schema)
