E57; Lemouzy; Paris (ID = 218764) Radio

E57; Lemouzy; Paris (ID = 231181) Radio

E57; Lemouzy; Paris (ID = 231182) Radio
E57; Lemouzy; Paris (ID = 1227002) Radio E57; Lemouzy; Paris (ID = 1227003) Radio
E57; Lemouzy; Paris (ID = 1086790) Radio
Use red slider bar for more.
E57; Lemouzy; Paris (ID = 1227002) Radio
Lemouzy; Paris: E57 [Radio] ID = 1227002 700x866
Select picture or schematic to display from thumbnails on the right and click for download.
For model E57, Lemouzy; Paris

Country:  France
Manufacturer / Brand:  Lemouzy; Paris
Year: 1934–1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: AF2 AK1 AF2 AB1 E446 E443H 1561
Main principle Superhet with RF-stage; ZF/IF 140 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 115; 130; 145; 160; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: E57 - Lemouzy; Paris
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 390 x 470 x 250 mm / 15.4 x 18.5 x 9.8 inch
Notes

3 gammes d'ondes : OC de 19 à 55 m, PO de 195 à 565 m, GO de 1000 à 2000 m. Anti-fading différé. Tonalité réglable. Lampes de cardran : 2 x 4 V / 0.3 A.

L'indicateur visuel au néon a été remplacé, dans le cours de l'année 1935, par un milli à ombre.

Ébénisterie noyer et palissandre, verni au tampon. Décor métal chromé.

Modèle spécial pour secteur alternatif 25 périodes.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 1'875.00 FRF
External source of data Serge Laffont/Martin Renoth

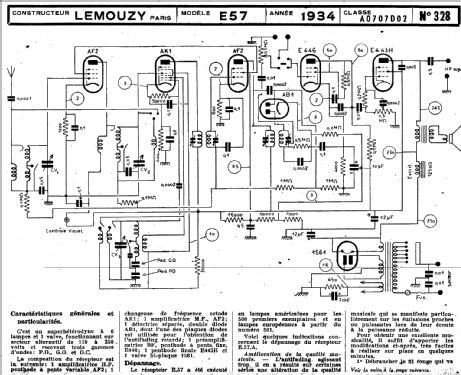

Circuit diagram reference La Documentation du Revendeur - Radio
Mentioned in -- Original prospect or advert (L'Antenne, 18.08.1935)
Literature/Schematics (1) Schémathèque Toute la Radio (STR) (No. 328)


All listed radios etc. from Lemouzy; Paris
