• Country
• France

• Manufacturer / Brand
• Lemouzy; Paris

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62686

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6F6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Power out
• 2.6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: IA5 - Lemouzy; Paris

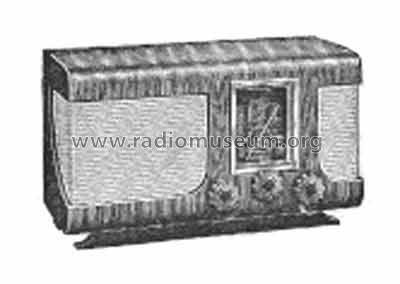

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 285 x 220 mm / 18.5 x 11.2 x 8.7 inch

• Notes

• Antifading, cadran illumineux. Ébénisterie vernie au tampon.

  Prix de lancement: 1395 Fr. Supplément pour 25 périodes: 35 Fr.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 1,575.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

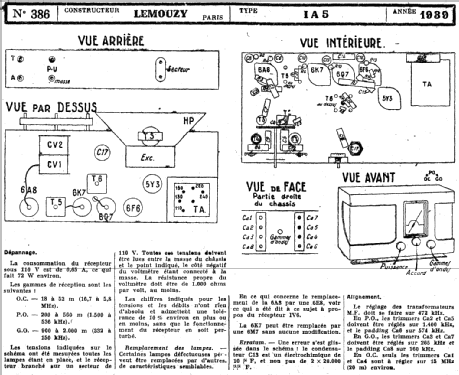

• Circuit diagram reference
• La Documentation du Revendeur - Radio

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 1161)

• Literature/Schematics (1)
• -- Original prospect or advert (Gamme 1938/1939)
