Monobloc 332

Monobloc 332; Lemouzy; Paris (ID = 2130407) Radio Monobloc 332; Lemouzy; Paris (ID = 2130408) Radio

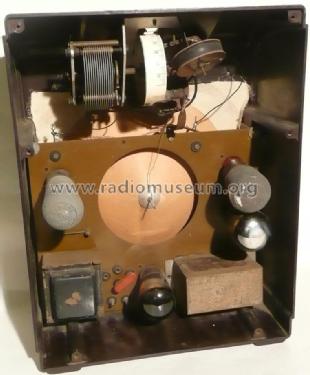

Monobloc 332; Lemouzy; Paris (ID = 2130409) Radio Monobloc 332; Lemouzy; Paris (ID = 2130410) Radio
Monobloc 332; Lemouzy; Paris (ID = 263391) Radio
Use red slider bar for more.
Monobloc 332; Lemouzy; Paris (ID = 2130407) Radio
Lemouzy; Paris: Monobloc 332 [Radio] ID = 2130407 920x1154
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monobloc 332, Lemouzy; Paris

Country:  France
Manufacturer / Brand:  Lemouzy; Paris
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RS4324 E438 C443 1801
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 130 or 220; 230; 250 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Monobloc 332 - Lemouzy; Paris
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 310 x 400 x 190 mm / 12.2 x 15.7 x 7.5 inch
Notes

Montage détectrice à réaction. 2 BF dont une de puissance.

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Price in first year of sale 1'375.00 FRF
Mentioned in -- Original prospect or advert

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Lemouzy; Paris
Here you find 213 models, 157 with images and 52 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Lemouzy; Paris: Monobloc 332
Threads: 1 | Posts: 2
Hits: 1640     Replies: 1
lemouzy: Lemouzy 332; Monobloc
Roman Kupperman
06.Jun.10
  1

Lemouzy 332 monobloc:

Tubes:

E424, Detector E409 ,LF Amplifier C443, End Amplifier V675 Rectifier (DARIO)

Martin Bösch
06.Jun.10
  2

Hallo Roman, it's great You have found the tube layout for this set.

Please do enter the tubes in our database, just use the "Upload & Questions" > "Model change, etc." > "Suggest Change" functions and enter the tubes in the respective field,
when You have done this, the tubes appear in the database and the model search from tube layout can find the model.

Kind regards Martin Boesch
