500 / TC500

Lemouzy; Paris

Data
Forum
Pictures
Collections

  • Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 108188

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 115-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

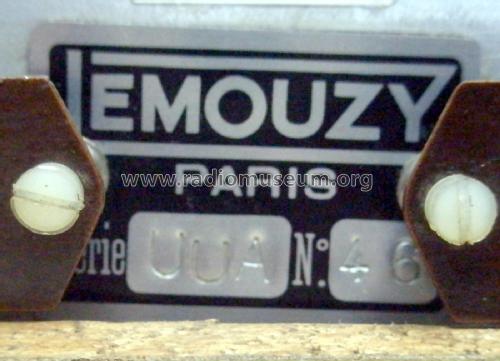

  • Model: 500 / TC500 - Lemouzy; Paris
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 300 x 230 x 170 mm / 11.8 x 9.1 x 6.7 inch
  • Notes

  • 3 gammes d'ondes. 5 lampes Noval. Cadre anti-parasites incorporé. Prises antenne-terre, pickup et HP supplementaire.

    Coffret bois gainé 2 tons.

    Fonctionne sur courant 230 volts par résistance additionelle.

  • Net weight (2.2 lb = 1 kg)
  • 3 kg / 6 lb 9.7 oz (6.608 lb)
  • Mentioned in
  • -- Original prospect or advert (Catalogue Oct. 1957, Mars 1958)
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
