• Country
• Soviet Union

• Manufacturer / Brand
• Leningrad Kinap Works

• Year
• 1957

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 221669

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6Ж7 6Н9С 6П3С 6П3С 5Ц4С

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

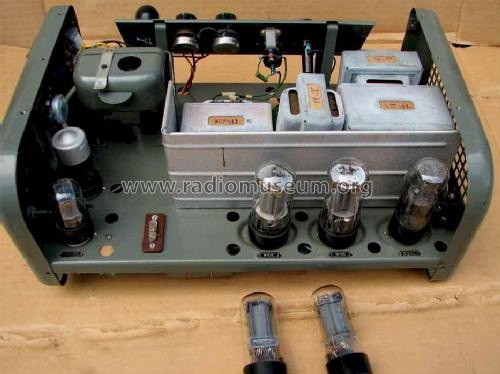

• Model: Kinap 90U-2 - Leningrad Kinap Works

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15.5 x 9.5 x 6.5 inch / 394 x 241 x 165 mm

• Notes
• Kinap - Кинап Gupp - Гупп 90U-2 - 90У-2;

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
