Avangard {Авангард} 55

Avangard {Авангард} 55; Leningrad Kozitsky (ID = 2340603) TV Radio

Avangard {Авангард} 55; Leningrad Kozitsky (ID = 2340605) TV Radio

Avangard {Авангард} 55; Leningrad Kozitsky (ID = 2340606) TV Radio

Avangard {Авангард} 55; Leningrad Kozitsky (ID = 2340607) TV Radio

Avangard {Авангард} 55; Leningrad Kozitsky (ID = 2340608) TV Radio

Avangard {Авангард} 55; Leningrad Kozitsky (ID = 2340609) TV Radio

Avangard {Авангард} 55; Leningrad Kozitsky (ID = 2340610) TV Radio
Avangard {Авангард} 55; Leningrad Kozitsky (ID = 137246) TV Radio
Use red slider bar for more.
Avangard {Авангард} 55; Leningrad Kozitsky (ID = 137246) TV Radio
Leningrad Kozitsky: Avangard {Авангард} 55 [TV Radio] ID = 137246 300x226
Select picture or schematic to display from thumbnails on the right and click for download.
For model Avangard {Авангард} 55, Leningrad Kozitsky Works:
Courtesy of V.Charcenko ..rw6ase.narod.ru

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1955 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 19: 6Ж3П 6Ж3П 6Ж3П 6Ж3П 6П9 6Н3П 6Н3П 6Ж3П 6Ж3П 6Ж3П 6П9 6Н1П 6Н1П 31ЛК2Б 6Н1П Г-807 1Ц1С 6Ц4П 5Ц4С
Semiconductors (the count is only for transistors) ДГ-Ц13 ДГ-Ц13 ДГ-Ц12
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110,127, 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Avangard {Авангард} 55 - Leningrad Kozitsky Works
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 545 x 585 x 400 mm / 21.5 x 23 x 15.7 inch
Notes

5-Kanal-Tuner nach OIRT-Band I + III sowie OIRT-FM-Radio; sogenanntes Klasse-3-Gerät.
5 OIRT VHF Channel Tuner and OIRT FM Radio, Signed as Class 3 Unit.

The used VHF tuner “ПТП-2“ is shown here: Блок ПТП-1 ПТП-2 ПТП-56
Net weight (2.2 lb = 1 kg) 45 kg / 99 lb 1.9 oz (99.119 lb)
Source of data -- Collector info (Sammler)

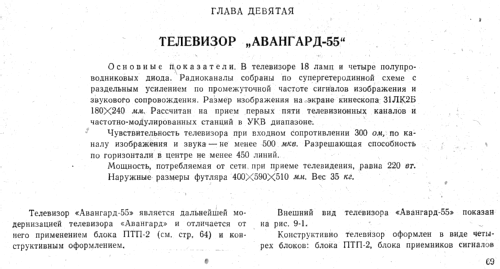

Mentioned in СПРАВОЧНИК ПО ТЕЛЕВИЗИОННЫМ ПРИЕМНИКАМ 1959
